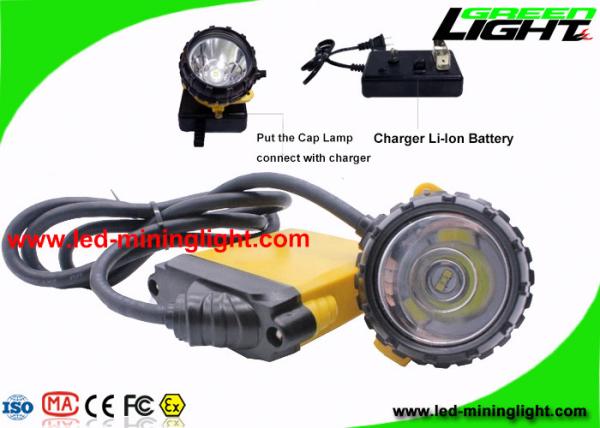

Ultra Bright 348 Lum Waterproof Miner Cap Lamp with 10.4 Ah Big Battery Capacity
Function of GL12-A 25000Lux mining lamp:
1. Advocate the lamp two levels of light
2. Low electric automatic reminders
3. SOS mode
4. Support 2A charging time.
5. Drop resistance: Military engineering plastic shell.
Main Features for Model GL12-A miner headlamp with cable:
1. Brightness: 25000lux high beam headlamp with cable.
2. Portable: light weight 490g and big battery capacity 10.4Ah
3. Fast charging: 2A charger, charging time less than 8hours
4. Better lighting spot: adopt aluminum lighting cup.
5. SOS for low power warning function for safety headlamp.
6. Special material with flame resistant, impact resistant. ATEX explosion-proof, Dust-proof.
7. Enviromental: Lithium battery with short circuit protection, over charging protection and over discharging, free mataince long battery life span.
8. OEM and ODM available. Write the request to cap lamps, such as clients company name, LOGO, seriey No and user name.
9. Optical Design: According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
10. Quality is our culture. We will be responsible for you if any quality problem and warranty time is one year.
Definition of Cap Lamp:
The cap lamp is an essential piece of equipment that has to be carried by every person working in an underground mining environment. It is a light source powered by a battery carried on the miner’s belt with a cable connecting to a headpiece. The headpiece of the miner’s cap lamp is attached onto the front of the miner’s helmet by means of a clip. The cap lamps are rechargeable and designed for between 600 and 1000 charge cycles depending on the battery technology chemistry used.
Main parameter of rechargeable led headlamp:
| Specification | GL12-A |
| Light sources | One main light and two auxiliary lights |
| Rated voltage | 3.7V |
| Battery capacity | 10.4Ah |
| Main light current(strong light) | 850mA |
| Main light current (working light) | 450mA |
| Power of the main light(strong light) | 3W |
| Power of the main light(working light) | 1.8W |
| luminous(strong light) | 348Lum |
| luminous(working light) | 240Lum |
| Brightness of the main light(strong light) | 25,000Lux |
| Brightness of the main light(strong light) | 15,000Lux |
| LED lifespan | 10,000hours |
| Battery cycles | 1200cycles |
| Charging time | 7.5hours |
| Cable length | 1.2m or 1.6m can be customized |
| Weight | 490g |
| Water-proof grade | IP68 |
| Light switch | light touch switch |
| Certified | CE&ATEX, ROHS
|
Application
Suitable for Coal mines, tunnel projects, Chemical Industry, Nuclear Power, Military automobile ship building industries, Oil refinery industries, platform channel, cable Interlayer, Pump house, Tunnel Projects, Climbing, Hiking, Mining, Patrolling, Overhauling, Emergency in electrical power industry, Military force, Fire Fighting, Dockyard and other hazardous locations.
