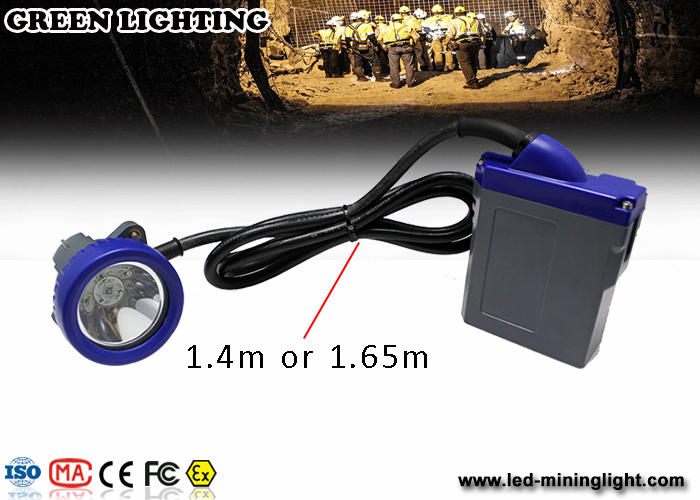

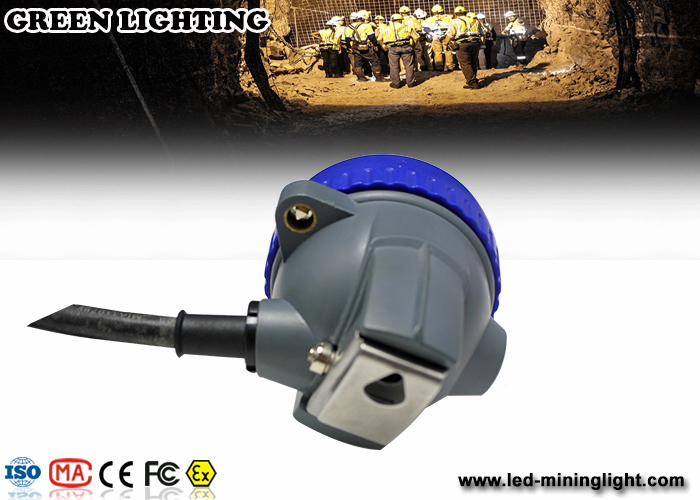

Mining emergency LED cap lights, mining helmet light with 1*18650 6.6Ah li-ion battery
The Product Instruction
1. It's our newest design miner’s cap lamp. It's safety, energy saving and has environment protection material PC.
2. Cree LED is its power type luminotron, making out long lifespan and high lighting effect.
3. The switch of headlamp adopts light-touch electronic switch, good seal and easy to use. And there is one LED indicator light on its cable, it will be opened while you press the switch. You can easier find someone in the dark environment or the survivals in the mine disaster.
4. With the microprocessor control chip inside, it has multi-function for self-protection, intelligent managing the process of charging and discharging.
5. Lithium manganic battery pack, which has no memory, free of maintenance, environment protection, safe and reliable. The product is widely used for lighting in the environment where flammable and explosive gases exist.
The Specification
| Light source | 1pcs main light and 6pcs auxiliary lights |
| Battery capacity | 6.6Ah |
| Rated Voltage | 3.7V |
| Main light current | 450mA |
| Power of the main light | 1.67 W |
| Lluminous | 216lum |
| Brightness of the main light | 10000lux |
| Life span for main LED | 100000 hours |
| Battery cycles | 1200 cycles |
| Working time | 16hours |
| Weight | 500g |
| Water-proof grade | IP68 |
| Certification | CE, ATEX, EXIB II MI |
Cautons
1. When the source is used up, you need promptly charge the lamp. For the longer usage life.
2. If you use it while it's charging, it will be very danger that more easier to burning out the internal components of the power source.
3.You should use the specified charger for your safety.
4. The light of LED lamps is ultra strong, please do not shine directly to someone's eyes.
5. Please charge it every two months when it is idled.
Troubles & Troubleshootings
| Trouble description | Trouble analysis | Troubleshooting |
| Press the button but the light is not on | Battery power is used up or Automatic opening protection | Charge the lamp |
| Working time is less than 12 hours | Battery is not fully charged | Make sure the lamp well connected to the charger when charging |
| Longer charging time | The charging points poor contact | Clean the charging points and the slot |
| Low illuminance | Dirty lens | Clean water wash lens |
