OEM Customized Colors 25000Lux Strong Brightness Mining Cap Lights
Features for Mining Cap Lights:
GL12-A Corded Miner Headlamp with 25000Lux strong brightness.
1. High brightness
2. Long work time
3. Anti-explosion
4. Drop resistance
5. Complete water-proof
6. 240° activity steel clipx Tact switch
7. Military engineering plastic shell.
More Details about this brightness corded cap lamp:
a. 25000lux strong brightness
b. Anti-explosiove, corrosion-proof.
c. IP68 water-proof
d. Flame retardant PC material (GERMANY BAYER BRAND)
e. Multi-function lighting modes: strong - weak - auxiliary lighting - SOS
f. Low power warning function
g. Short circuit and over charging protection
h. Each lamp with one 2000MA quick charging charger
i. Adjustable clip for lighting angle adjustment.
j. 10.4Ah big battery capacity for long working time.
Technical Specification:
| Features | GL12-A Specifications |
| Rated capacity | 10.4Ah |
| Rated voltage | 3.7V |
| Continuous discharging time(standard version) | ≥16hours |
| Main light LED Working Voltage | 3.7V |
| Main light LED Working current | 850A |
| Main light Power | 3W |
| Main light Luminous flux | 348Lm |
| Lamp lighting degree Initial Lighting degree | 25000Lux(distance in 1 m) |
| Lamp lighting degree Lighting degree in 16 hours | 1800Lux(distance in 1 m) |
| Main light life span | ≥30000h |
| Auxiliary light Power | 1.8W |
| Auxiliary light life span | ≥100000h |
| Short circuit protect time | <320μS |
| Life span of the battery (recharges) | 1200 cycles (in reasonable working condition) |
| Charging time | 6Hours |
| Main cable | 1.4M/1.65M |
| Weight | 590g |
Series corded cap lamp:
| Specification | KL12LM-A | KL12LM-B |
| Light source | LED CREE | LED CREE |
| Battery capacity | 10.4Ah | 6.6Ah |
| Rated Voltage | 3.7V | 3.7V |
| Main light current(strong light) | 800mA | 400mA |
| Main light current(working light) | 450mA | 230mA |
| Power of the main light (strong light) | 3W | 3W |
| Power of the main light (working light) | 1.8W | 0.9W |
| Brightness of the main light (strong light) | 25000Lux | 15000Lux |
Brightness of the main light
(working light) | 15000Lux | 10000Lux |
| Life span of main LED | 10000h | 10000h |
| Battery cycles | 1200cycles | 1200 cycles |
| charging time | 6h | 6h |
| weight | 490g | 430g |
Usage of Mining Cap Lights:
Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries,
suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project ,
Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine ,
Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

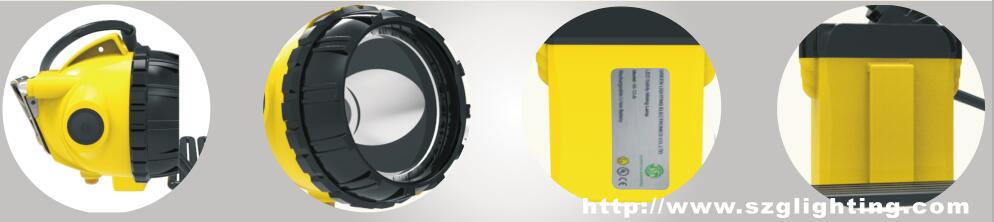

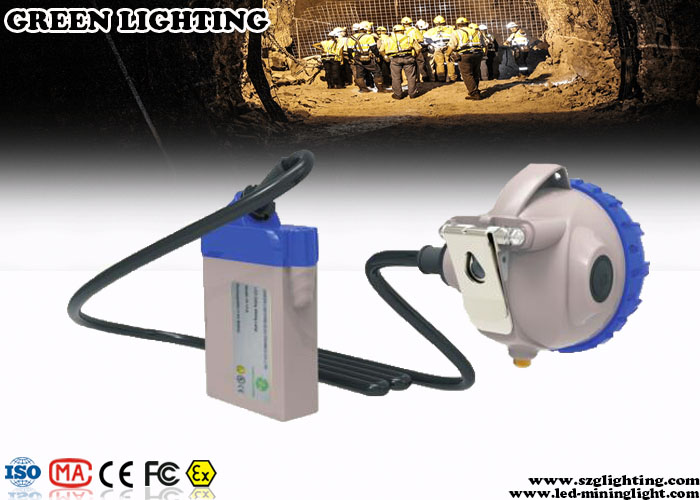

Product Pictures:
